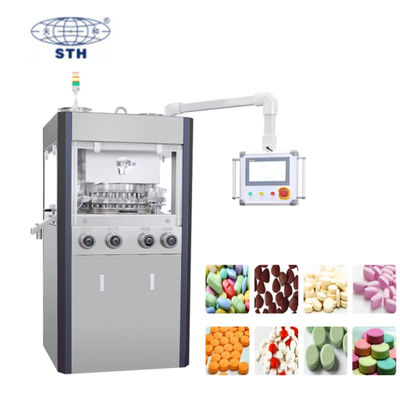

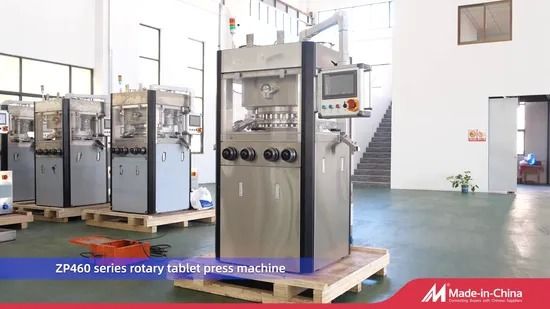

ZP460 Series Rotary Tablet Press Machine
APPLICATION
This machine is one kind of tablet press machine, for compressing granular materials into tablets. It is mainly used to press hard-forming materials into tablets in pharmaceutical industry and also the chemical, food, electronic industries.
FEATURES
- Fully enclosed structure with operation compartment isolated from the outside, ensuring clean tablet compressing area without cross contamination. The compressing compartment is made of stainless steel, complying with GMP requirements.
- Turret surface with chrome plating to prevent wear.
- Speed adjustment via frequency inversion. Motor connected with under plate to prevent shaking during operation.
- Fully automatic lubrication system with interval type, micro flow and quantitative lubrication for upper & lower tracks and punch heads to reduce wear.
- Overload protection unit automatically stops the machine to prevent damage to punches and apparatus.
- Various impellers for force feeder to meet different raw material feeding requirements.
MAIN TECHNICAL SPECIFICATIONS
| Model |
ZP-31 |
GZP-39 |
GZP-47 |
GZP-51 |
| Number stations |
31 |
39 |
47 |
51 |
| Tooling Standard |
D |
B |
BB |
BBS |
| Max main pressure(KN) |
100 |
| Max Pre-pressure(KN) |
20 |
| Max Tablet Diameter(mm) |
25 |
18 |
13 |
11 |
| Max Filling Depth(mm) |
15 |
| Max Tablet Thickness(mm) |
6 |
| Max Turret Speed(r/min) |
40 |
| Max Production Capacity(pcs/h) |
148800 |
187200 |
225600 |
244800 |
| Motor Power(kw) |
5.5 |
| Overall Size(mm) |
1120*980*1800 |
| Machine Weight(kg) |
2000 |
DETAILED FEATURES
Delta 10 inch color touch screen
- Display real-time working pressure, rotating speed, output counter and other data
- 3-level management authority
- Electronic signature CFR21
- Remote access
- Single value pressure display
Electrical system
- Adopt international famous brand, such as Delta, Schneider etc.
Automatic lubrication oil system
- With automatic lubrication system, fully lubricate the pressure wheel, track and punching rod to extend the service life and reduce wear
Feeder device
- Adopt force feeder to improve granules flow-ability and filling performance
Safety Features
- Upper is Emergency stop switch
- Blue socket connected the De-duster

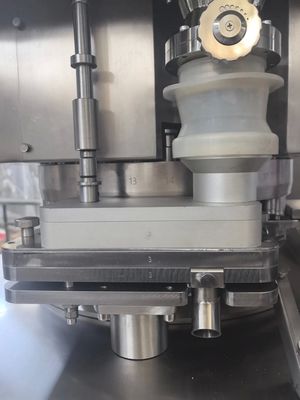

Punches & Dies
- Adopts TSM-Tooling standard
- Customization available: round, irregular, shallow concave, deep concave, bevel edged, detachable, single tipped, multi tipped, chrome plated or carbide ones
- Material options: S7/D2, DC53, 6CrW2Si, GCr15 etc.
- Can press single layer, bilayer or triple layer (optional)
Packaging & Shipping
- Wooden packaging meets export packaging standards
- Packaging is free of charge
- Delivery time is 15-45 working days
- Transportation methods: SEA, AIR and EXPRESS
After Sales Service
- Installation Services available with all new machine purchases
- Technical support for installing, debugging, and operation
- Engineer dispatch to customer factory for setup and operation
- Quality service and support commitment
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located in Shanghai, Chongming District. Warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: You can send us samples and we will test on machines. We will take videos and pictures for you, and can show you online via video chat.
Q: How can I trust you for the first time business?
A: We suggest using Trade Assurance Service for all transactions to protect your money and assure our service.
Q: How about the after service and guarantee period?
A: We offer 1 year warranty. Technical support reply is available within 24 hours. We have professional team with experienced technicians to serve abroad.
Q: How to contact you?
A: Please find the contact information on this page, you can contact us by Email, Wechat, Whatsapp and phone etc.
Samples
Our Exhibition
Company Profile
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years and exported over 70 countries.
We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory service. We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.
All machines in our factory can be customized depending on your requirements. We have successful experience designing machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control, reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
