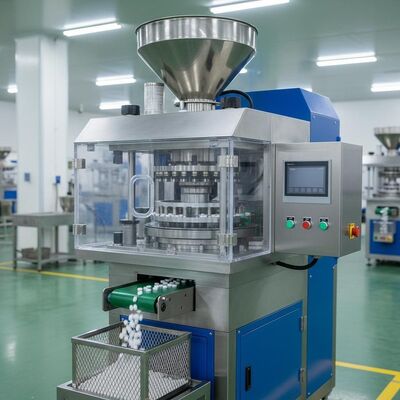

ZP45A-HD Heavy Duty Rotary Tablet Press with 100KN Max Pressure 243000 Tablets/Hour for 24/7 Continuous Operation

ZP45A-HD Heavy Duty 24/7 Continuous Operation Rotary Tablet Press

The ZP45A-HD is a heavy-duty industrial rotary tablet press purpose-built for 24/7 non-stop continuous operation in demanding pharmaceutical, chemical, and nutraceutical manufacturing environments. Featuring reinforced main bearings, enhanced cooling systems, and industrial-grade drive components, this machine delivers uncompromising reliability for high-volume production lines requiring round-the-clock operation.

Key Features

• 24/7 Continuous Heavy-Duty Operation: Engineered with double-row tapered roller bearings on the main shaft, hardened and ground pressure rollers, and a reinforced cast iron frame with vibration-dampening mounts. The automatic centralized oil lubrication system with integrated oil cooling maintains optimal bearing temperatures even during extended production runs, ensuring consistent performance across three-shift operations.
• Industrial-Grade Drive System: 7.5KW heavy-duty motor paired with a robust variable frequency drive (VFD) and hardened helical gear transmission. The oversized motor operates at 60-70% of rated capacity under full load, providing substantial thermal headroom for continuous 24/7 operation without overheating.
• 45-Station High-Output Turret: ZP45A configuration with 45 punch stations delivering up to 243,000 tablets per hour. Precision-ground die table with hardened steel cam tracks ensures consistent tablet compression quality even after millions of cycles.
• 100KN Maximum Compression Force: Robust pressure rollers with oversized diameter distribute 100KN force evenly across all active stations. Pre-compression roller (optional) enables gentle deaeration before main compression, suitable for difficult powders and effervescent formulations.
• Force Feeder with Independent Drive: Dedicated motor-driven force feeder with adjustable paddle speed ensures consistent die filling regardless of powder flow characteristics. Critical for maintaining tablet weight uniformity during extended 24/7 production runs with minimal operator intervention.
• Automatic Weight Control System: Real-time tablet weight monitoring with automatic feedback adjustment. Rejects out-of-specification tablets and alerts operators to weight drift trends, ensuring consistent product quality throughout continuous production batches.

Technical Highlights

• Reinforced main shaft with oversized double-row tapered roller bearings rated for 50,000+ hours continuous operation
• Automatic centralized oil lubrication with integrated oil cooling radiator
• Thermal monitoring sensors on main bearings and drive motor with automatic alarm and shutdown protection
• Vibration-dampening cast iron base frame with leveling mounts
• Stainless steel 304 compression zone with fully enclosed guarding system
• Dust extraction interface with adjustable suction control
• Emergency stop system with safety interlock on all access panels
• Digital production counter with resettable batch tracking

Applications

Designed for high-volume industrial tablet production including pharmaceutical tablets, nutraceutical supplements, effervescent cleaning tablets, water treatment tablets, detergent tablets, chemical catalyst tablets, and ceramic powder pressing. Compatible with D, B, and BB standard tooling for maximum production flexibility.

After-Sales Service

Comprehensive 12-month warranty with 24/7 online technical support. On-site installation and commissioning service available. Complete spare parts inventory maintained for express global shipping. Operator training program including machine operation, tooling setup, and preventive maintenance procedures.
